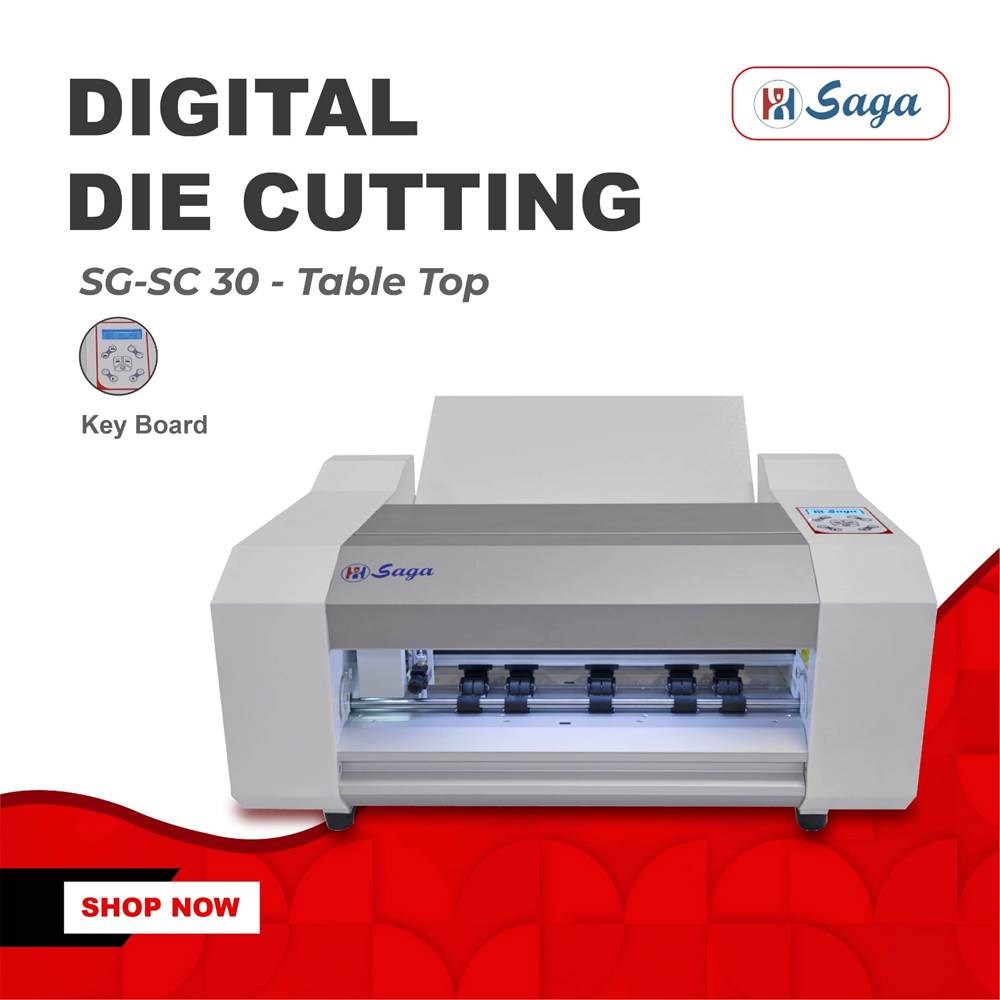

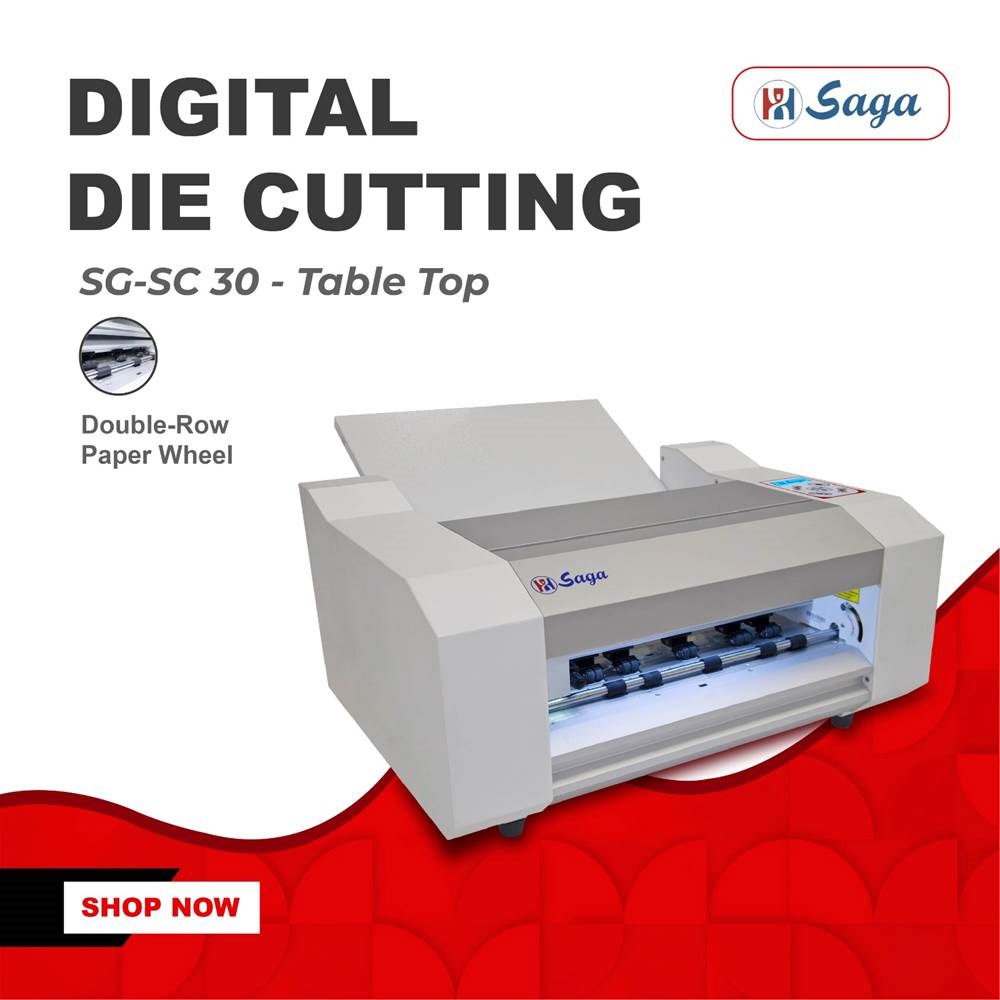

SAGA CAMERA ECONOMY
SHEET CUTTER MACHINE
SG-SC 30
CCD automatically recognizes and locates for more accuracy;
QR code intelligent hybrid cutting, different documents auto
matically recall the cutting path;
Multiple connection modes, USB, U disk, offline, network cable,
WIFI;
Large capacity automatic feeding, holding 100 sheets of
self-adhesive at once(Depend on varaible material);
widen the paper structure, smooth paper feeding, avoid double
sheets;
Cutstudio displays the cutting status in real time, and the
software background workload and efficiency can be tracked
and viewed;
Tool-free disassembly for ease of use and maximum space
savings.
PRODUCT PARAMETERS:
Model name
Power and working environment requirements
SG-SC 30
Software and compatibility
Cutting control system
Sheet feeding method
Scanning speed
Maximum sheet size
Positioning sensor type
Maximum cutting size
Maximum actual cutting speed
Minimum cutting character
About 5mm² (Depend on varaible material and graphics)
Maximum cutting force
Maximum paper weight
Control panel
Scanning code type
Sheet feeding
Stepper motor
Mechanical resolution
Programmable resolution
Net/Gross weight
Actual dimensions
Tools
Connectivity
Software and compatibility
Cutstudio,Corel Draw / Illustrator Plugin
Adaptive dimming digital camera
Round marker, corner marker, QR code
Up to 100 pcs depends on thickness of the paper
Cutting precision (Patterns)
Three patterns(Speed first, Balance first, Precision first)
Friction feed
6-10s
483mmX330mm
473mmX325mm
800
500gf
250g(Depend on varaible material)
LCD with keys
0.09mm
26±5kg/45±5kg
L695mm×W480mm×H340mm
L820mm×W680mm×H550mm
Package dimensions
Single tool holder, with one blade and one pen
HPGL 0.025mm
LAN?U disk?USB
Voltages
100VAC~240VAC,3.0A 50/60 Hz
150W
Power
Operation environment
Temperature +5? to +35 ? (Fahrenheit 41-95),
Humidity 30% -75% (Non-condensing)
This parameter is subject to change without prior notice. The company reserves the right of final interpretation
